Crane Scales
A superb range of crane scales with a variety of capacities, resolutions and functions.
The components used in the manufacture of the MCW Range of crane scales are inspected by an experienced and competent team. Our load cells are put through stringent safety tests. The MCW Crane scales have a breaking load which is 5 times more than their nominal capacity (K5).
We offer a good range of connectivity for remote control and monitoring of your crane scale(s), for more information on this, or any other aspect of any of the scales on this page, please call us on 01684 561002 and we would be happy to help you.
MCWN "NINJA" SERIES SINGLE SECURITY SUSPENDED CRANE SCALES
Easy to use and reliable professional digital crane scales, for weighing in industrial environments, fitted with protective transport case.
The single security system makes them suitable for lifting and weighing the load.
Thanks to their compact size, these crane scales just slightly reduce the lifting distance of the crane. Available also CE-M APPROVED. Fitted with test certificate obtained with standard weights.

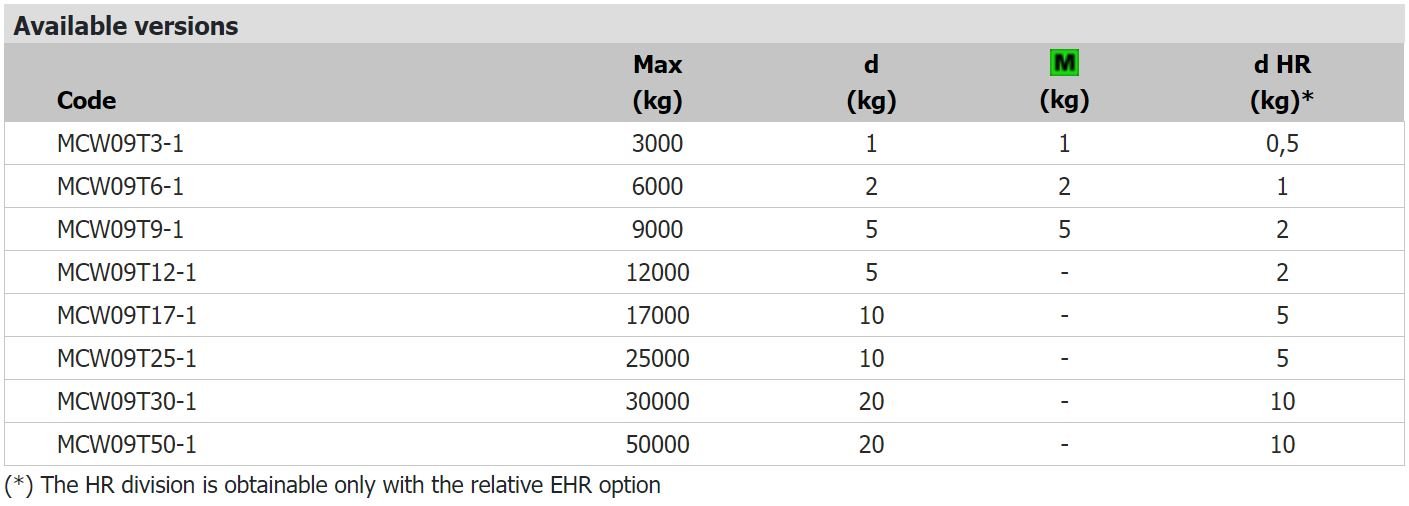

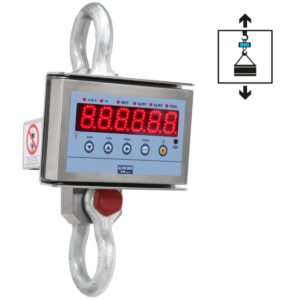

MCW09 "PROFESSIONAL" SINGLE SECURITY CRANE SCALE SERIES
Stainless steel digital crane scale with IP67 protection against dust and sprays, 40mm DOT LED large display, for maximum visibility from all angles and in any lighting condition, even direct sunlight.
The single security system makes them suitable for lifting and weighing the load.
Sturdy and reliable, usable indoors as well as outdoors. Minimum reduction of the crane’s lifting space.
The models with up to 15000 kg capacity are fitted with test certificate obtained with sample weights, for higer capacities the certificate is available on request.

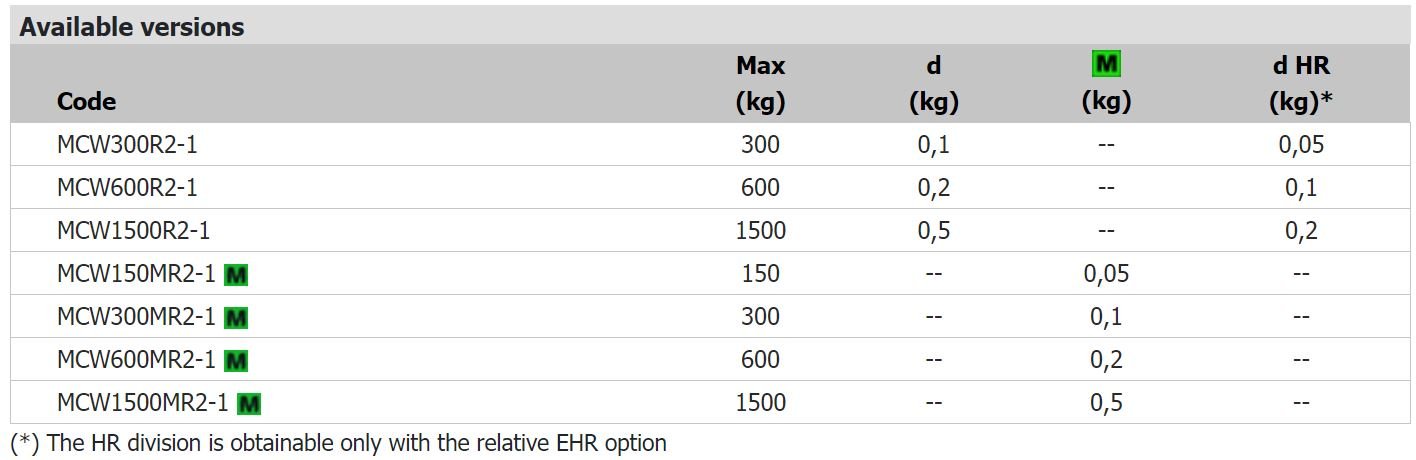

MCW "PROFESSIONAL" SERIES SINGLE SECURITY CRANE SCALES
Reliable and easy to use AISI 304 stainless steel crane scales suitable for indoor and outdoor use, for industrial weighing applications. Reduced lifting distance of the crane.
The single security system makes them suitable for lifting and weighing the load.
IP67 protection from dust and rain. Available also CE-M APPROVED. Fitted with test certificate obtained with sample weights.
MCWHU "HULK" SERIES DOUBLE SECURITY CRANE SCALES
High capacity crane scales for industrial weighing, reliable and easy to use, suitable both for commercial warehouses and for more harsh environments.
Thanks to the double security system, they allow lifting, weighing and moving the suspended load and they can be installed permanently on the lifting system.
They are extremely compact in height and they take up little space. Configuration for optional upper connection ring and lower hook. The models with a capacity up to 15000 kg are supplied with a test certificate obtained with standard weights, while for higher capacities the certificate is available on request. They are available both for internal factory use and CE-M APPROVED.
MCWX2GD SINGLE SECURITY SUSPENDED CRANE SCALES
Industrial crane scales for use in areas classified as hazardous (Zone 1 and 21, 2 and 22) in accordance with ATEX Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.
The single security system makes them suitable for lifting and weighing the load.
Structure completely in stainless steel, with IP65 protection degree. LITTLE SPACE IS TAKEN UP allowing the best use of the lifting devices. Predisposed for an upper connection ring and lower hook.

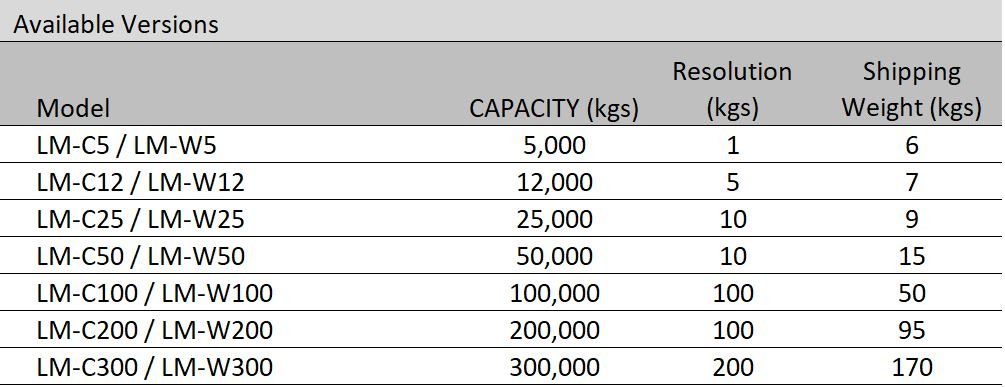

LOAD-MASTER
AVAILABLE AS EITHER A WIRED, OR WIRELESS DEVICE.
Used in a huge range of suspended load measurement, proof load testing and overhead weighing processes, the versatile LOAD-MASTER ‘load link’ tension load cells are the workhorse of our product range.
The standard portable load cell system includes handheld indicator in either cabled or wireless connection, mounted in a carry case (100, 200 & 300 tonne units supplied in wooden crates).
LOAD-MASTER wireless load cells also available with an extensive range of indicating, recording and control instruments for specific requirements.
Commonly used for proof load testing of cranes and lifting equipment, over head weighing in material handling processes, and measuring multi-point suspended loads.
LOAD-MASTER load cell systems can be adapted and customized to suit the specific requirement of the operation, including multi-channel logging, large high visibility displays and control system outputs.

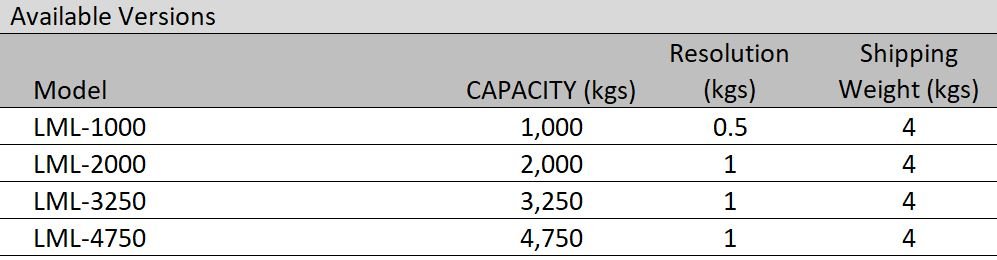

LOAD-MASTER LITE
The Loadmaster Lite tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.
Ultra compact size and low weight relative to capacity yet retaining the same high safety factor throughout the range, rated capacities from 1tonne to 4.75tonne.
Available from stock for immediate dispatch
