Description

MCW09 “PROFESSIONAL” SINGLE SECURITY CRANE SCALE SERIES

CRANE SCALE: MAIN FEATURES

• Single security system, for the lifting and the weighing of the load.
• In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
• Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.
  Usable indoors as well as outdoors, great visibility also in full sunlight.
• Adjustable brightness intensity.
• Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
• Fitted with approved galvanised shackles:
  GR6 for MCW09T3
  GR6 for MCW09T6
  GR9 for MCW09T9
  GR12 for MCW09T12
  GR17 for MCW09T17
  GR25 for MCW09T25
  GR35 for MCW09T30
  GR55 for MCW09T50
• Extremely reduced distance between upper and lower shackles.
• Precision: +/- 0,05% on F.S. for 3T to 9T models
• Precision: +/- 0,1% on F.S. for 12T to 50T models
• 5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
• Programmable digital filter, for an excellent weight display in any working condition.
• Programmable automatic switch-off function, either through keypad or remote control.
• Fitted with radiofrequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
• Configured for an 868MHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
• Rechargeable battery, with an average life of about 30 hours.
• Configured for a second optional extractable battery for 24/7 continuous use.
• Fitted with 230Vac 50 Hz battery charger.
• Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.

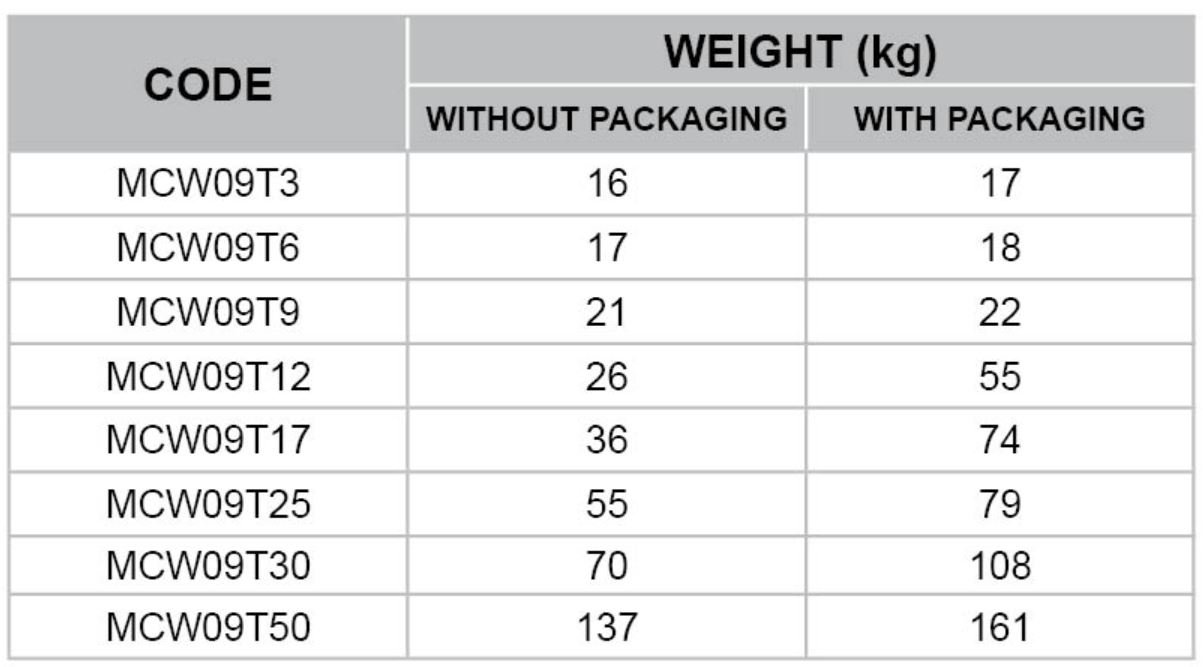

• Operating temperature range: -10/+40 ºC.PACKAGING IS INCLUDED IN THE PRICE
  for the complete protection against scratches and bumps during transportation. The crane scale is shipped inside a sturdy wooden case which is custom made (MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1 versions).

CRANE SCALE: REMOTE CONTROL FUNCTIONS

• The crane scale is fitted with a radiofrequency remote control which allows to do the Zeroing; the tare; enable / disable functions; printing; switching-off the crane scale.

SELECTABLE FUNCTIONS

• PEAK (maximum value read).
• HOLD (lock of the displayed weight).
• Weighing totalization.
• lb/kg/N conversion (see DFW weight indicators for more functions).
• +/- checkweighing.
• Percentage weighing.
• Counting.
• Peer-to-peer.
• High Resolution Weighing x 10.

OPTIONS (AT TIME OF ORDER)

• Radio frequency weight transmission to remote indicator, up to 70m indoors.
• 868Mhz radio interface.
• WI-FI interface.
• Remote weight indicator connected in radio frequency, with the printer or other accessories.
• ACCREDIA calibration certificate according to OIML/ASTM standards.

Data Sheet: MCW09
