The DFW Range of Indicators.

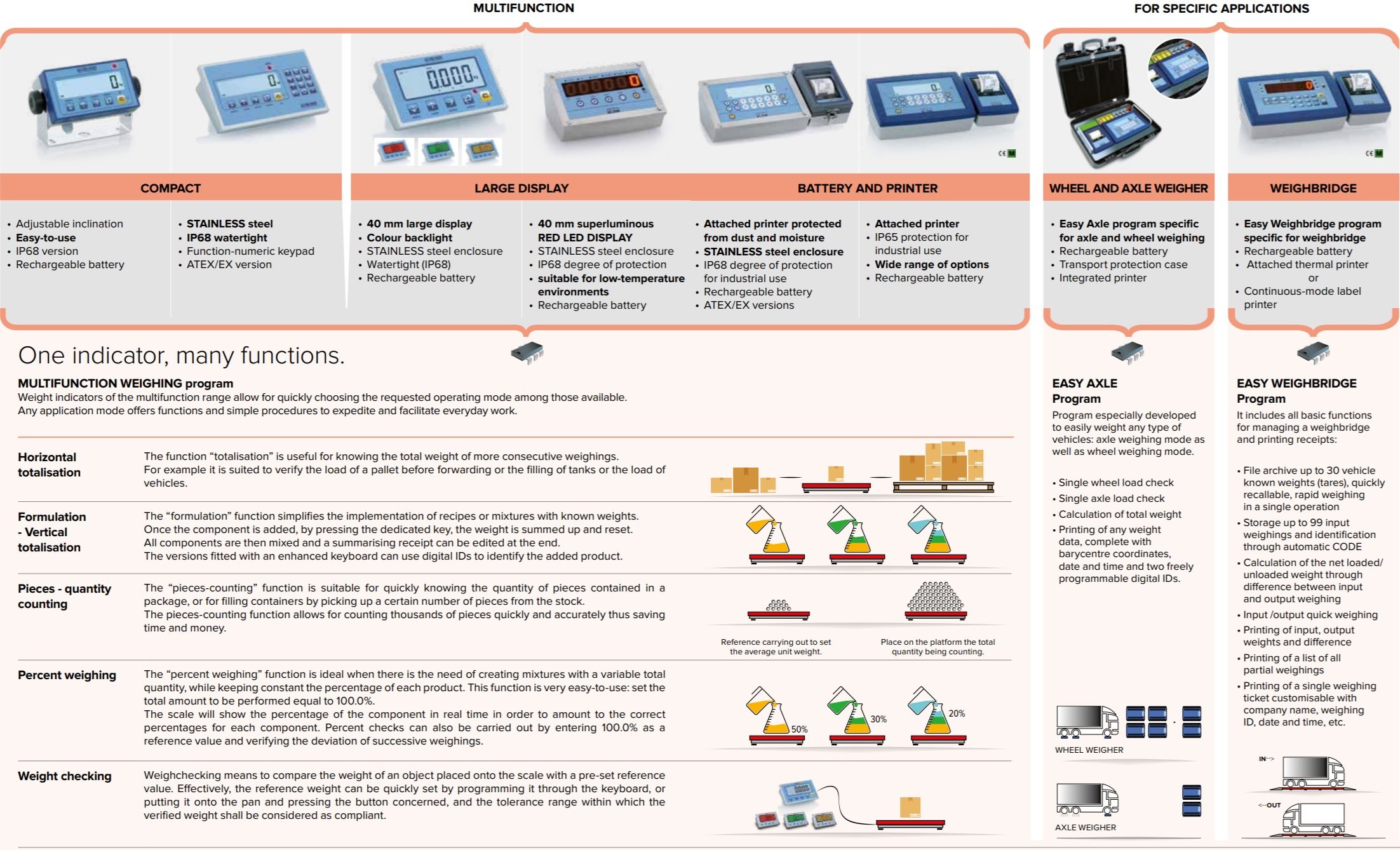

DFW-OVERVIEW
DFWLB

"DFWL": MULTIFUNCTION WEIGHT INDICATOR

High performance and reliability at a competitive price. The DFWL digital weight indicator is versatile and easy to programme and use. The wide range of available functions and interfaces, make it suitable for many different kinds of industrial and commercial weghing applications. Suitable for pallet truck scales, fork lifts and automotive. Standard fitted with a support bracket with adjustable inclination, for use on the table, column, or wall. CE-M approvable (OIML R-76 / EN 45501)

DFWLB

"DFWLB (Battery)": MULTIFUNCTION IP68 WEIGHT INDICATOR FOR INDUSTRY

Digital weight indicator for industrial environments, easy to install and use. The IP68 protection degree and the built-in long life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination. CE-M approvable (OIML R-76 / EN 45501).

DFWPM

DFWPM "PLAY MOBILE": REMOTE CONTROL AND PORTABLE WEIGHT REPEATER

Radio frequency remote control and weight repeater in one solution, for DFW indicators and MCW crane scales. Easy to transport and view due to its small size and large backlit display. DFWPM can control the main scale functions from a distance using the integrated keypad.
The USB version allows to save weights for the further processing by a PC.
Fitted with a long life rechargeable battery.
IP65 protection.

DFWLI

"DFWLI": MULTIFUNCTION WEIGHT INDICATOR, IN IP68 STAINLESS STEEL CASE

Easy to programme and use, versatile and high performing weight indicator. The wide range of available functions and interfaces, make it suitable for multiple industrial and commercial weighing applications, such as floor scales, mobile weighing, etc. Case in IP68 stainless steel. CE-M approvable (OIML R-76/EN 45501).

DFWXP

MULTIFUNCTION WEIGHT INDICATORS "DFW XP"

New version of DFWXP weight indicators with completely renewed weighing program and keyboard. The wide range of operating modes and the available interfaces make it perfect for many industrial and commercial weighing applications. It can be used as scales and platforms on the ground, mobile scales etc. Type-approved CE-M(OIML R-76/EN45501).

DFWR

"DFWR - RED LED": INDICATOR WITH VERY BRIGHT RED LED DISPLAY

Digital weight indicator, with very bright and efficient red LED, easily visible from all angles, from long distances. Brightness intensity is easily adjustable. Its high performance and available programmes make it suitable for all industrial and commercial applications. CE-M approvable (OIML R-76 / EN 45501).

DFWT

DFWT "TRUCK": INDICATOR FOR WEIGHBRIDGES, WITH INPUT/OUTPUT FUNCTION

Digital weight indicator for weighbridge management. Extremely simple and intuitive, easing the user with the weighing operations. Fitted with database of 99 open input weighs and database of 30 quickly recallable tares. Fitted with attached thermal printer. CE-M approvable (OIML R-76 / EN 45501).





DFWATEX2GD

DFW "ATEX2GD": WEIGHT INDICATOR FOR ATEX 1 & 21 ZONES

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases,
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.
Ideal for creating weighing systems, batching, and automation systems. EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501)

DFWATEX2GD-F

"DFWATEX2GDF": INDICATOR FOR DOSAGE IN ATEX 1 & 21 ZONES

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases,
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.
Ideal for creating automatic or semiautomatic dosage systems in loading or in unloading, or multiproduct dosages and mixtures. EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501)

DFWATEX3GD

DFW "ATEX3GD": WEIGHT INDICATOR FOR ATEX 2 & 22 ZONES

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 3G Ex nR IIC T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
Ideal for creating weighing systems, batching, and automation systems. CE-M approvable (OIML R-76 / EN 45501)

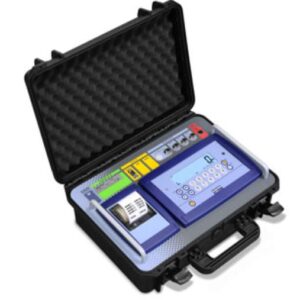

DFWKRP

"DFWKRP": INDICATOR FOR VEHICLE WEIGHING

Multifunction digital weight indicator in Rack version complete with 4 connectors for linking the platforms, built-in rechargeable battery, battery charger, thermal printer, time/date and case. It is particularly suitable for vehicle weighing applications. CE-M approvable (OIML R-76 / EN 45501)
