ATEX ACCESSORIES

Designed for use within their specified ATEX Zones.





PW200

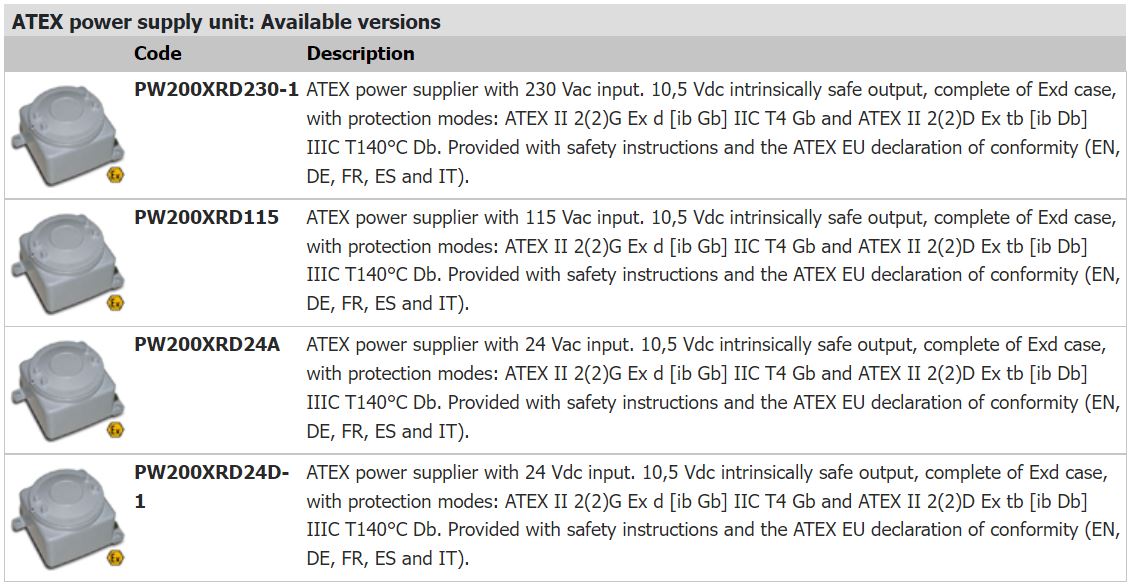

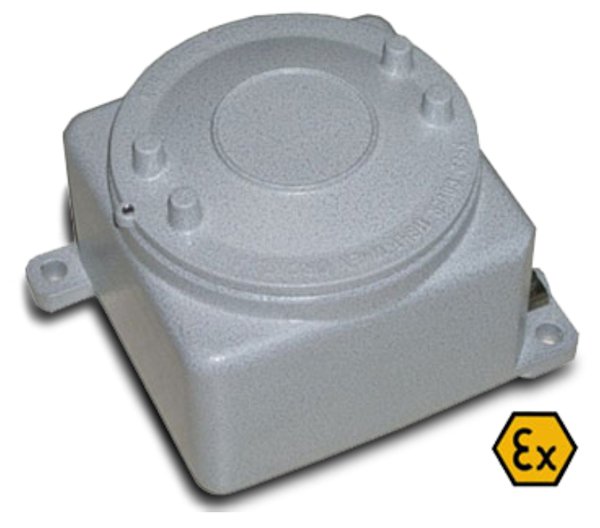

PW200XRD POWER SUPPLIER FOR ATEX 1 AND 21 ZONES

Power adapter and input/output interfacing module, for zones classified as hazardous (zones 1 and 21) with these protection modes:
ATEX II 2(2)G Ex d [ib Gb] IIC T4 Gb and
ATEX II 2(2)D Ex tb [ib Db] IIIC T140°C Db.

zener-1

ATEX/IECEX TRIPLE ZENER BARRIER FOR LOAD CELLS "ZBA1S"

The Zener Barrier ZBA1S is the perfect solution for the connection between a weighing terminal and a weight receiver system in the ATEX ZONE. ZBA1S integrates three barriers in one, protecting the excitation line, signal and sense. This feature makes the installation easier, especially in small spaces. This saves time and money.

kmb-1

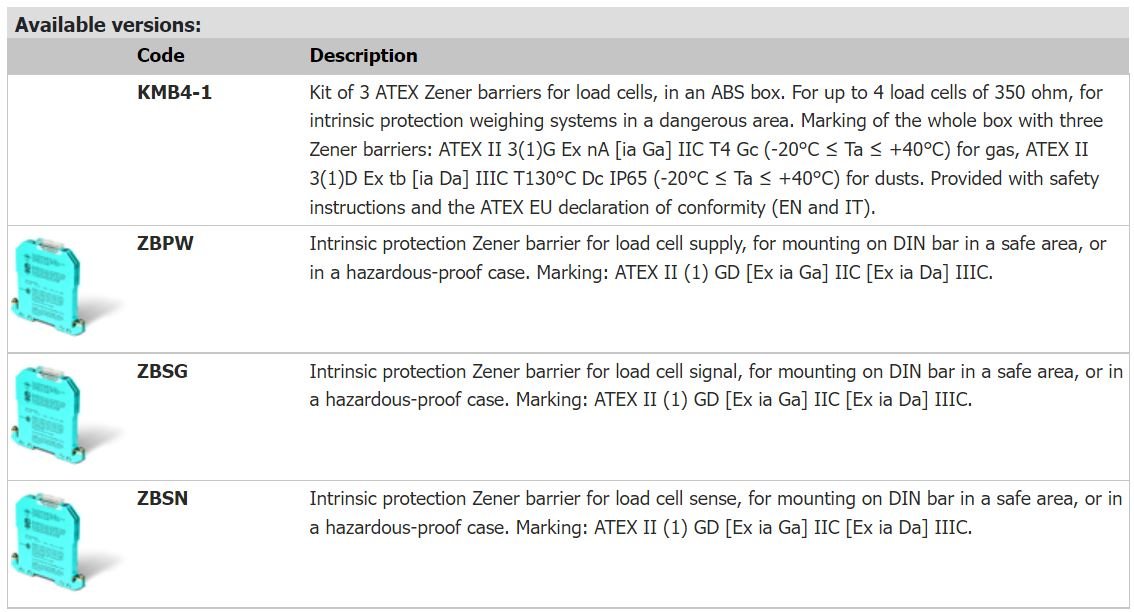

"KMB4" BOX WITH PASSIVE SAFETY ZENER BARRIERS, FOR ATEX ENVIRONMENTS

Kit of three intrinsic protection Zener barriers, for connection of devices in ATEX area with devices in safe area, housed in an ABS box.
Marking of single barrier: ATEX II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC.
Marking of the whole box with three Zener barriers:
ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas
ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dust.

OBRF3GD

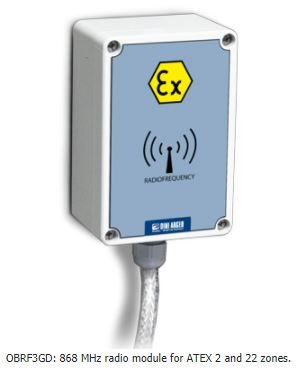

"OBRF3GD" - RADIO FREQUENCY INTERFACE BOX FOR ATEX 2 and 22 ZONES

Radio frequency module for the wireless data communication in ATEX 2 and 22 zones, with protection methods according to:
ATEX II 3G Ex nA IIC T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP66 X for dust.
It can be applied to both bench/floor scales as weel as mobile scales, such as pallet truck scales or pallet weighing scales, and it allows to transmit data at a very long distance.

OBWIFI3GD

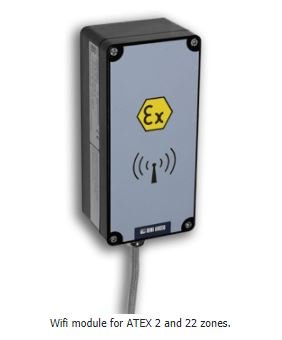

"OBWIFI3GD": WIFI INTERFACE BOX FOR ATEX 2 and 22 ZONES

WIFI module for the wireless data communication in ATEX 2 and 22 zones, with protection methods according to:
ATEX II 3G Ex ec IIB T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP66 X for dust.
It can be applied to both bench/floor scales as well as mobile scales, such as pallet truck scales or pallet weighing scales. It allows the easy wireless connection to the company computer system and the data transmission at a very long distance.
