Optional accessories for the 3590 range of indicators
EXTERNAL BATTERY OPTIONS
BP6V12A

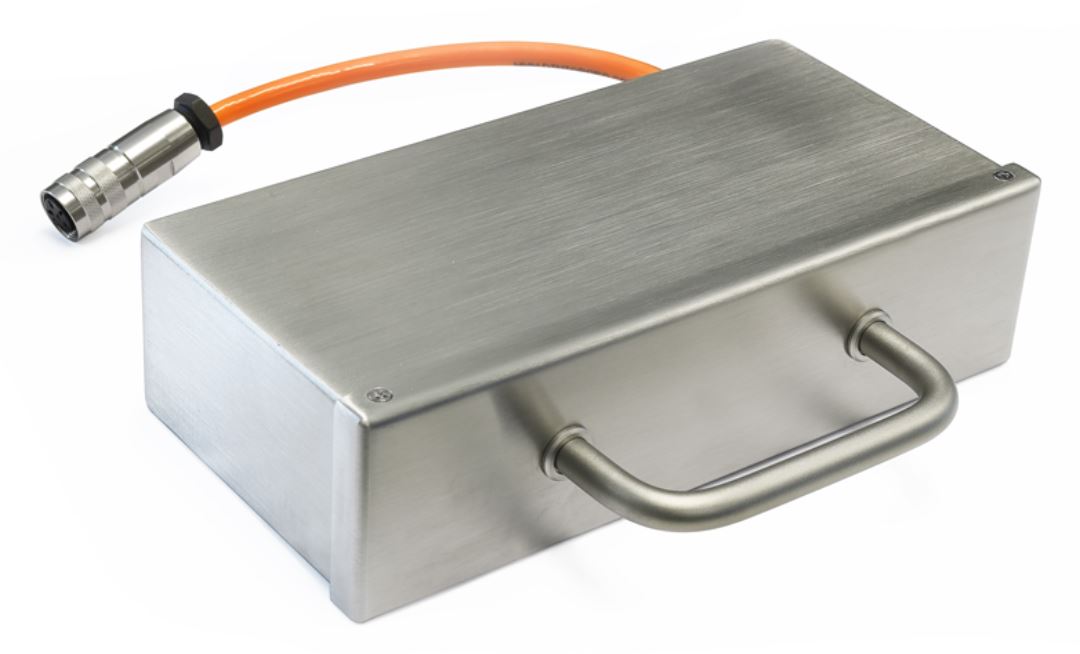

IP67 stainless steel external battery pack, 6V 12Ah. TAKE NOTE: this battery can be directly recharged from the indicator's motherboard, when the indicator is connected to the main line (230Vac)(recharge time about 12h with turned off indicator). Otherwise, it's possible to recharge the battery by using the BP6CBE recharger (recharge time about 8h)
BTCB6

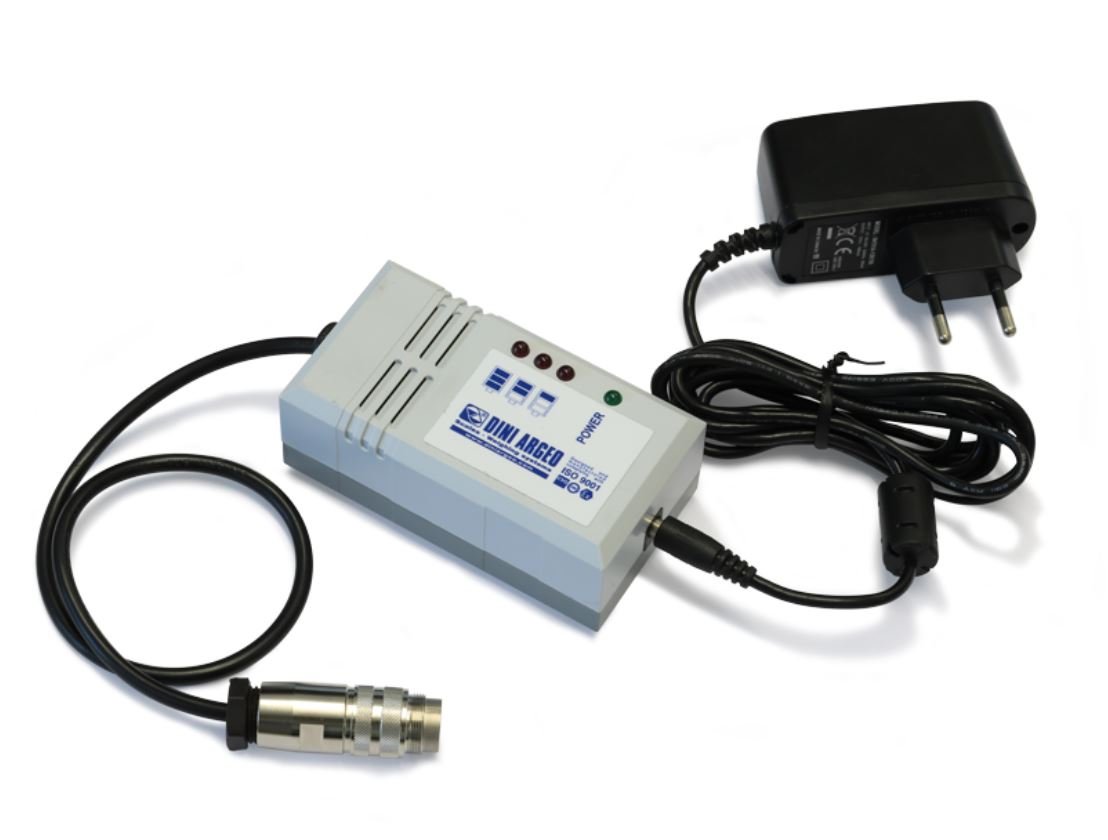

Battery charger for BT6V12A battery.
STFA-12
Stainless steel bracket for mounting the ATEX battery on column. Compatible with "DFWBP76ATEX..", "BP6ESTATEX3GD.." and "BP6V12A".
BTCB6
Cable for BP6V12A battery connection
EXTERNAL DATA STORAGE
OBRF-2
Built-in USB port to store data on a USB driver. To be combined with touchscreen weight indicators. It does not occupy serial ports. Fitted with USB key for PC. TAKE NOTE: this interface cannot be ordered separately and is to be combined with a weight indicator as part of the order
OBRF-2
Set of 5 USB keys for recording the weighs
OBRF-2
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale)
COMMUNICATION INTERFACES
OBRF-2

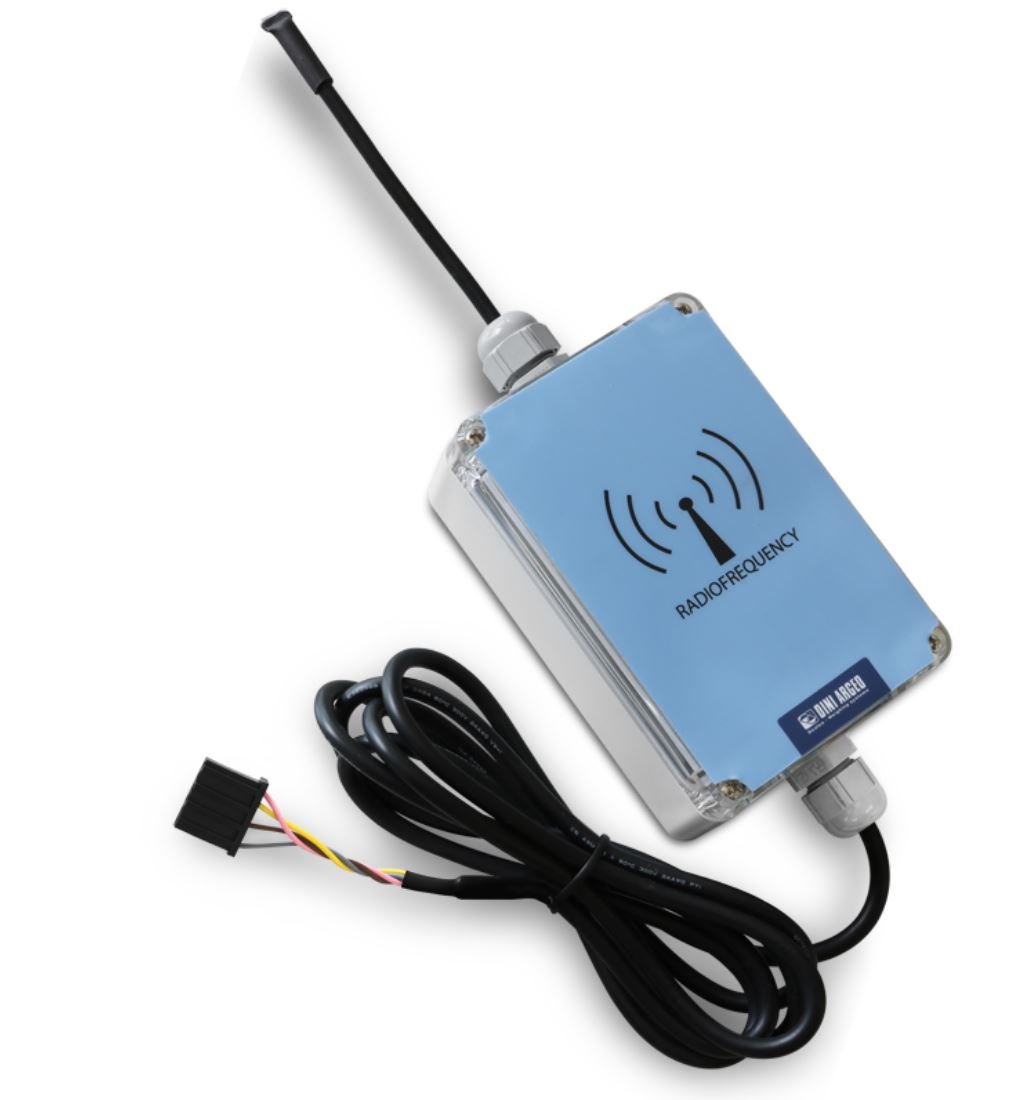

External 868 MHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels
OBRFUSB-3
External 868 MHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels
RFITR-1
Built-in 868 MHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. Up to 50 configurable channels.(RFITR must be combined with another radio module)
WIFITD-2
Built-in WI-FI interface. For wireless connection (through access point) to the company computer system
SETHNET
External RS232/Ethernet interface. Suitable for multi-location weighbridge systems networking. Compatible only with the AF03 software.
PROFI23201
External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable)
RS485C
Built-in RS485 interface (mounting and cable gland excluded)
BLTH-2
Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones or laptops. Weighing apps downloadable from Google Play
RS485OPTO
Built-in optoisolated RS485 interface (mounting and cable gland excluded).
FIELDBUS INTERFACES / SERIAL CONVERTERS
PROFINET1S
RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected)
ETHERNETIP1S
RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected)
ETHERCAT1S
RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected)
DEVICENET1S
RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected)
CANOPEN1S
RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and label (if expected)
NOTE: The above Fieldbus interfaces are only compatible with standard AF01 weighing programme
