Single Cell Platform Scales

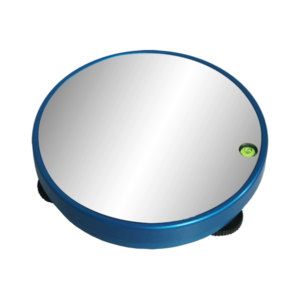

RPLC Series Single Cell Round Platforms
Small capacity electronic round platforms made in anodized blue aluminium. Precise and sturdy structure, suitable for scales and automatic weight checking systems in all industrial and commercial applications. Standard version is with approved load cell.
178mm Dia scale, 45mm high. Capacities ranging from 1.5kg x 0.2g, up to 15kg x 2g
ATEX Certificate for this platform is available at point of order either as a component for a self certified system or as part of a system being Certified by PWS Ltd.
M Series Single Cell Platform Scale
Heavy Duty Mild steel Construction of frame with 304 grade Stainless Steel platform pan, IP66 load cell.
Supplied with column & base bracket & column to indicator fixing bracket.
Can be EC approved @ 3000 divisions.
Sizes from 300 x 300mm @ 15kg capacity up to 700 x 500 @ 300kg capacity.
This Platform is NOT Suitable for an Atex Application
S Series Single Cell All Stainless Platform Scale
Heavy Duty 304 grade Stainless Steel platform, IP67, encapsulated load cell.
Supplied with column & base bracket & column to indicator fixing bracket.
Can be EC approved @ 3000 divisions.
Sizes from 300 x 300mm @ 15kg capacity up to 700 x 500 @ 300kg capacity.
This Platform is NOT Suitable for an Atex Application
T Series Single Cell Platform Scale
Small and medium capacity electronic platforms with a AISI304 stainless steel Surface.
- Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP65 standards (350 Ohm input resistance).
- Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
- Fitted with AISI 304 satin finish stainless steel loading surface.
- Up to 15 Vdc power supply.
- Shielded 3m connection cable with connectors for connection to the indicator.
Sizes from 230 x 330mm @ 3kg capacity up to 700 x 700mm @ 600kg capacity
ATEX Certificate for this platform is available at point of order either as a component for a self certified system or as part of a system being Certified by PWS Ltd.
TE Series Single Cell Platform Scale - Stainless Steel
Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements.
- Functions with an approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
- Structure with tubulars, mechanics, trinkets and loading surface in AISI304 satin finish stainless steel.
- Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
- Up to 15 Vdc power supply.
- Shielded 3m connection cable with connectors for connection to the indicator.
Sizes from 230 x 330mm @ 3kg capacity up to 700 x 700mm @ 600kg capacity
Also available with a C6 Loadcell option.
ATEX Certificate for this platform is available at point of order either as a component for a self certified system or as part of a system being Certified by PWS Ltd.
