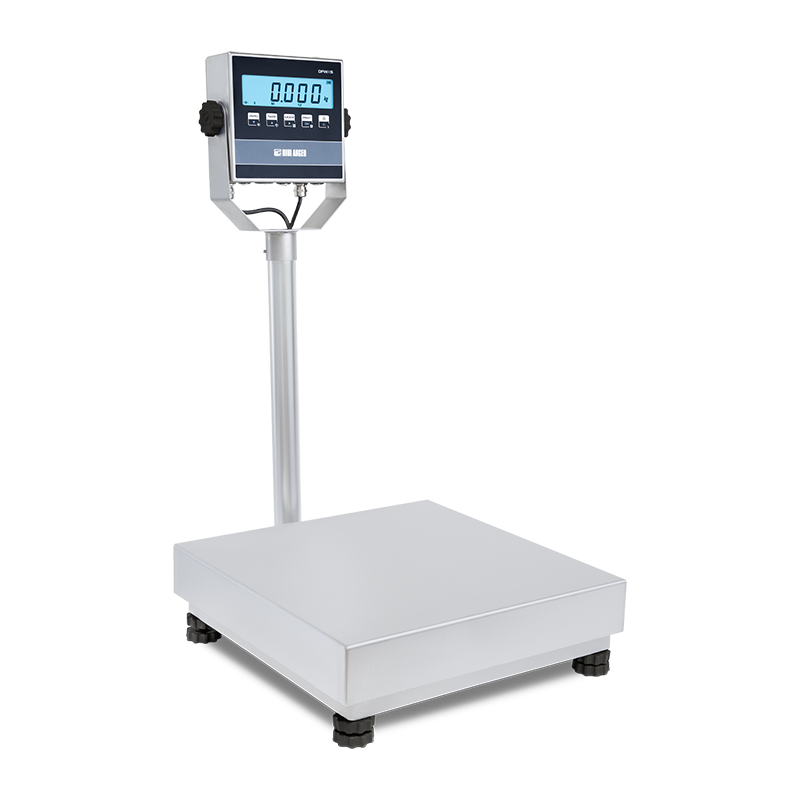

Weicomp Pro Series Bench Scale

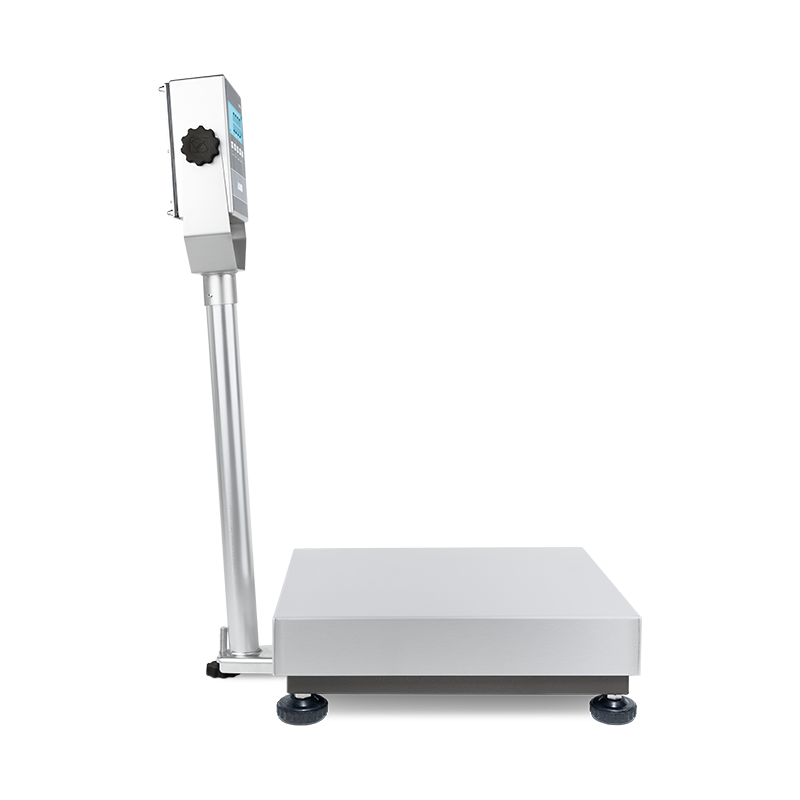

Weicomp Pro Series Bench Scale - Image 2

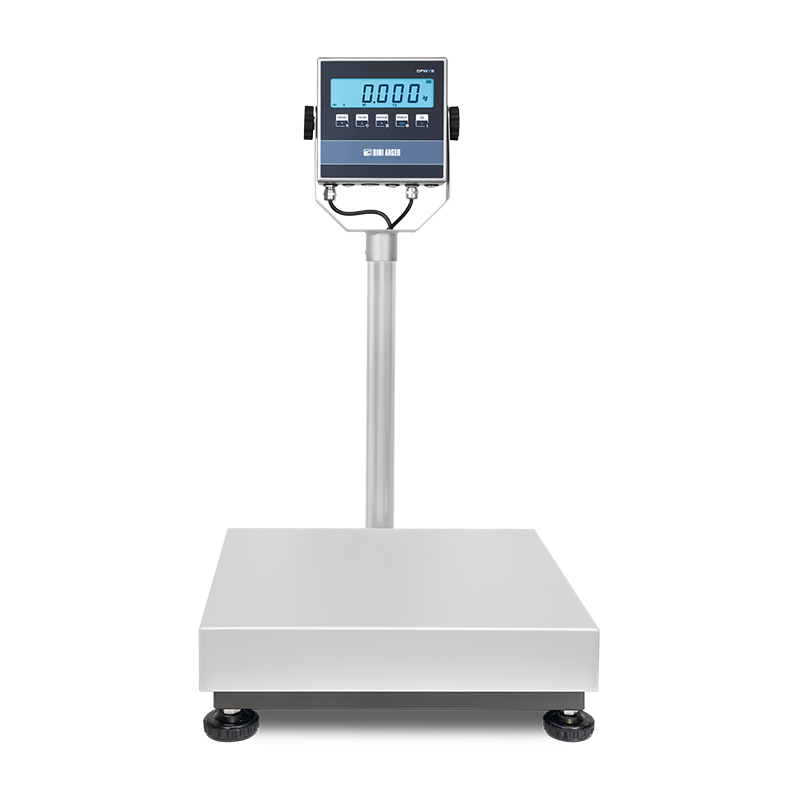

Weicomp Pro Series Bench Scale - Image 3

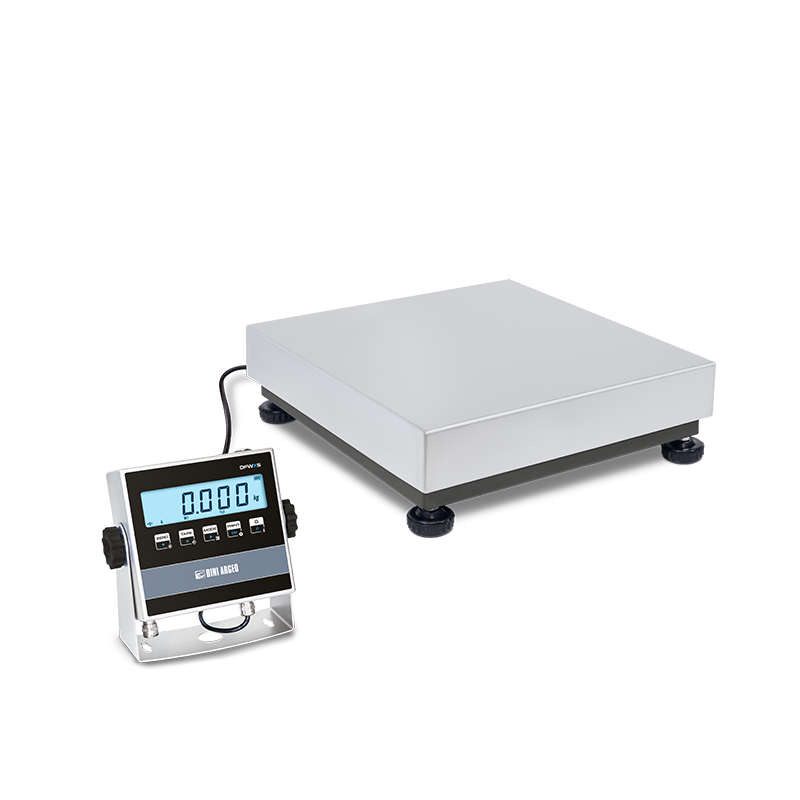

Weicomp Pro Series Bench Scale - Image 4
Weicomp Pro Series Bench Scale - Image 5
Weicomp Pro Series Bench Scale - Image 6

Weicomp Pro Series Bench Scale

New WEICOMP® Series: The Scale that Simplifies Your Business

Operational Autonomy and Advanced Connectivity to Simplify Every Weighing Process

Options Available:-

  • In All Stainless Steel or with a Mild steel base with Stainless top pan.

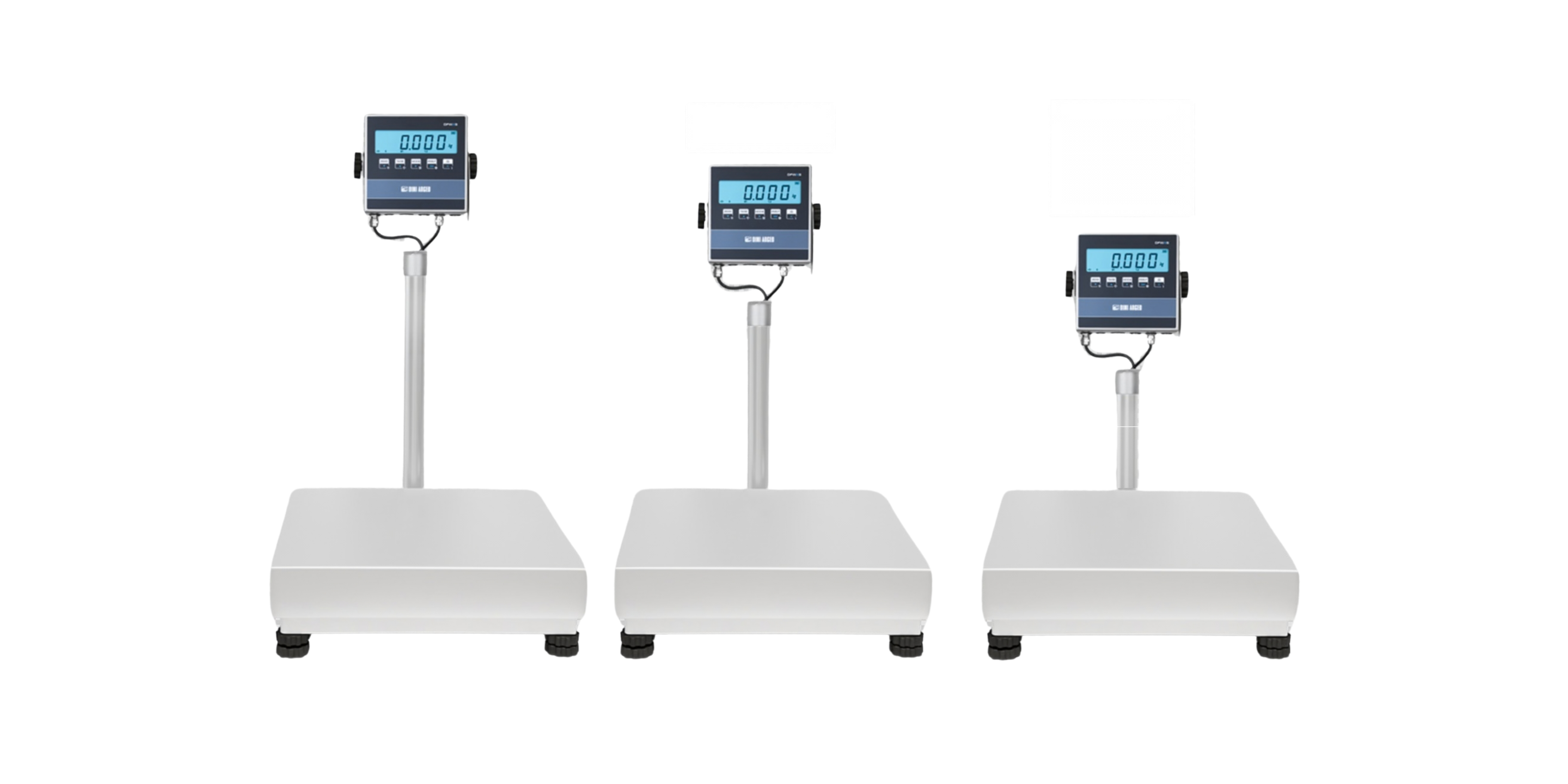

  • With or without column
  • Options on column length
Categories: , , , ,

Description

Professional performance, robust design and RELIABLE precision

  • This scale combines a solid painted steel structure with an AISI 304 stainless steel top plate and IP67 aluminum load cell, ensuring strength and reliability even in the most demanding environments.
  • The multifunction weight indicator with stainless steel case, interactive RGB color display, and 230 VAC power supply with integrated NiMh battery ensures maximum visibility and autonomy. Certified in accuracy classes C3 and C3MR, it offers unparalleled weighing speed and stability.
    Entirely designed and built in Italy, it is the ideal choice for those seeking quality and performance.

Technical Features – Platform

  • Sturdy painted steel OR Stainless structure.
  • AISI 304 stainless steel top plate with satin finish.
  • Loadcell overload protection stops.
  • High-precision aluminum load cell with IP67 protection. OIML R60 approved in class C3 or C3MR.
  • Adjustable feet.
  • Level bubble integrated into the structure.

Input / Output Communication Ports

    • RS232 on screw terminals for connection to Dini Argeo PCs/printers.
    • RS232 on AMP connector, with CTS, for connection to
    • Dini Argeo printers.
    • RS485 on screw terminals for connection to PCs/PLCs,
    • with Modbus RTU or ASCII protocol.
    • USB-C for connection to PCs.
    • Customizable weight communication string.
    • WiFi port (Optional)
    • Ethernet TCP/IP port (includes Modbus-TCP protocol) (Optional)

Main Functions

  • Net or gross weight control, according to sample.
  • Take away weight control.
  • Piece counting and control.
  • Weighing in percentages.
  • Weight conversion to lb, or with a freely programmable conversion factor.
  • Totalization.
  • Formulation.
  • Automatic tare.
  • Manual dosing.
  • Animal weighing.

Options

    • Optional stainless steel column, available heights 350 / 500 / 700 mm.
    • Gravity Conveyor Roller unit.
    • Approvals 3000e, 3000+3000e.
    • Communication interfaces.
    • Alibi memory.
    • WiFi port
    • Ethernet TCP/IP port (includes Modbus-TCP protocol)

Technical Features – Indicator

  • Multifunction weight indicator in AISI 304 stainless steel.
  • 25mm 6-digit LCD display with interactive RGB color backlighting.
  • 5-key numeric function keypad.
  • Support bracket with adjustable angle, with fixing holes.
  • Load cell connection to the weight indicator via IP67 connector.
  • Internal power supply 230 VAC / 12 VDC, with 1,5m cable and EU or UK plug.
  • Internal rechargeable NiMH battery, with approx. 80h autonomy; Charging time approximately 6 hours.
  • Configurable energy saving functions to minimize energy consumption.

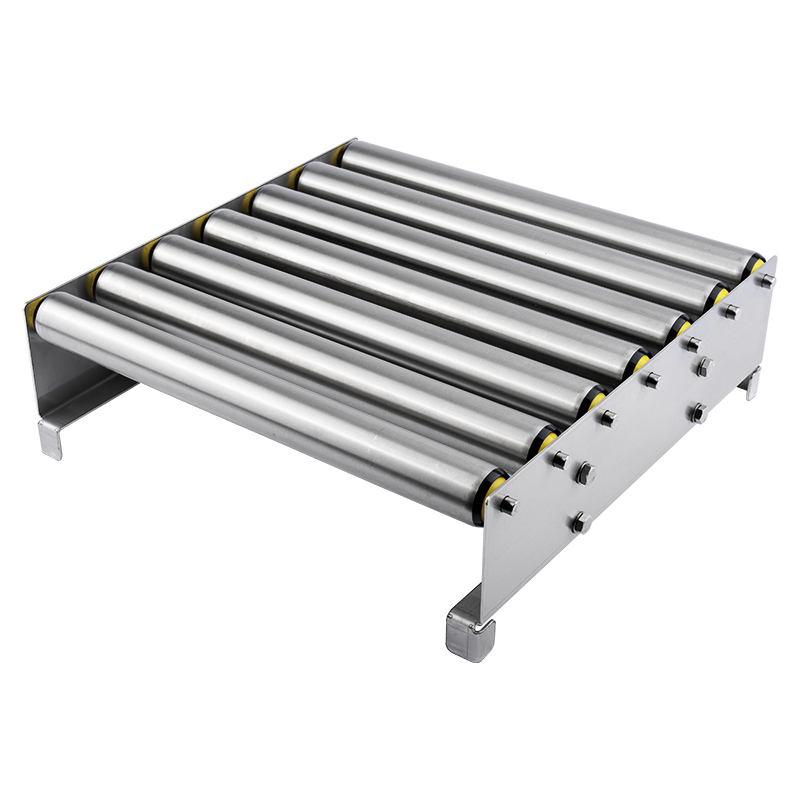

Gravity Conveyor deck to suit all sizes

  • Available in Stainless
  • Mild steel
  • Food grade Poly Propylene

Column Height Options

  • 350mm
  • 500mm
  • 700mm
  • Bespoke (Cut to order)

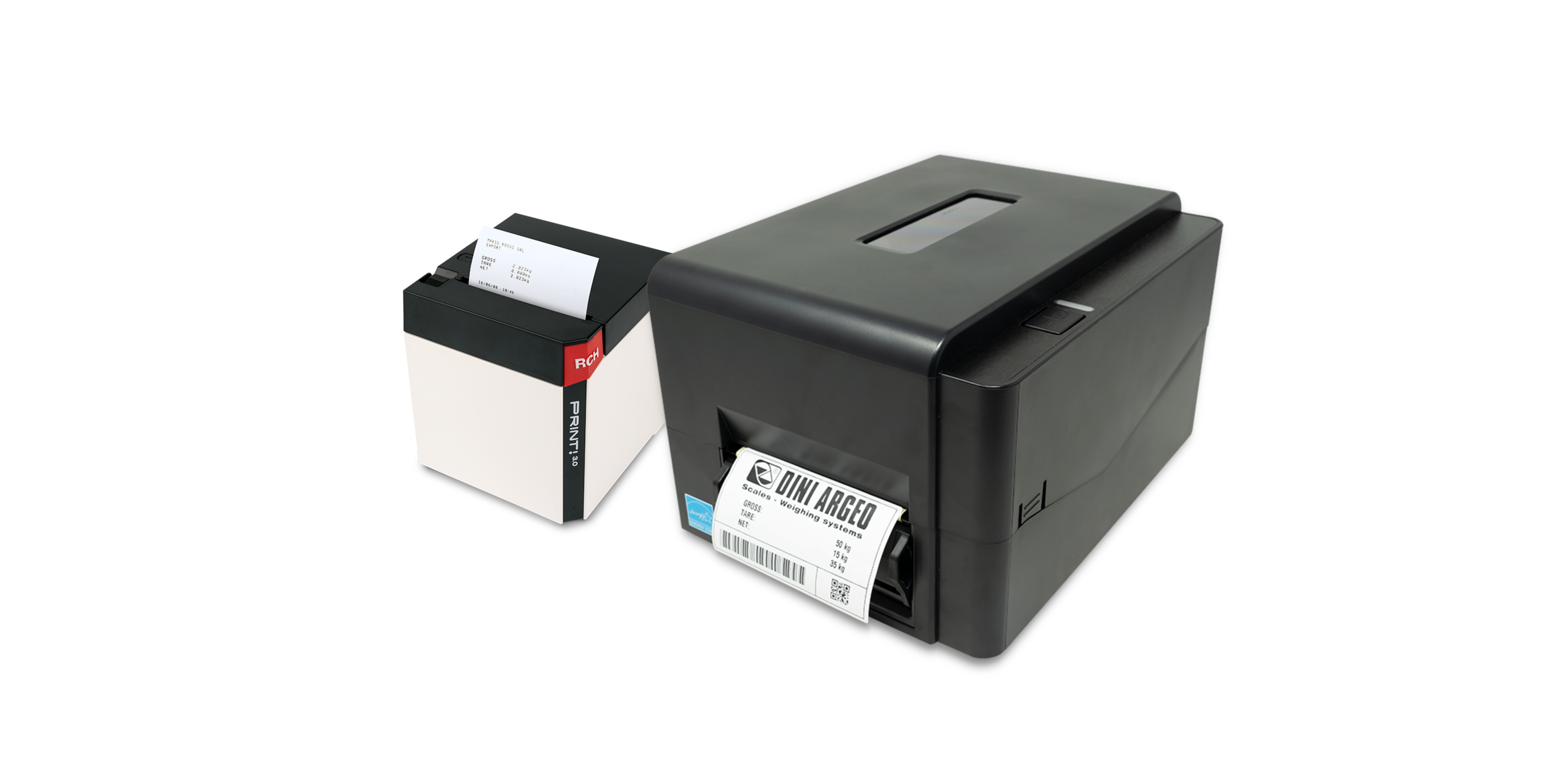

Printer Options

  • Receipt printer
  • Label Printer
