Description

TPWLKI SERIES STAINLESS STEEL PALLET TRUCK SCALE

Stainless steel pallet truck scales with built-in multirange electronic weighing, easy to use. Weight detection with four IP68 stainless steel load cells. Sturdy structure suitable for harsh work conditions. Available also CE-M APPROVED.

MAIN FEATURES

• Maximum lifting capacity: 2000 kg.
• Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
• Accuracy: +/- 0.05% of the maximum capacity in the “M” approved versions.
• Fork dimensions 1180 x 550 x 80 mm. Weighs about 135 kg.
• Bearing structure in extra thick STAINLESS steel.
• Lifting pump in STAINLESS steel.
• Steering wheels and double loading rollers in nylon.
• Closed forks, for a higher protection of the double loading wheels.
• 4 IP68 stainless steel shear beam load cells.

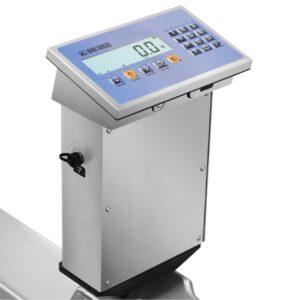

• IP65 stainless steel weight indicator, easy to clean and resistant to harsh and corrosive environments; large 25mm backlit LCD display, clearly visible also in poor lighting conditions.
• Calibration and Set-Up from keyboard or from PC.
• Power supply through built-in rechargeable battery.
• 80-hour approximate operating time or one month with the typical non continuous use, thanks to its auto switch-off function.
• Programmable auto power saving function.
• Low battery warning.
• Equipped with 230Vac 50 Hz battery charger.
• Bi-directional RS232/C port for connection to printer.
• Bi-directional RS232/C port for PC, radio modem, or portable terminal.
• IR input for managing the remote control.

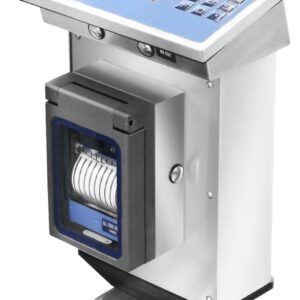

• Fitted with thermal printer in the TPWLKIP and TPWLKIPM versions.

MAIN FUNCTIONS

• The user can select the operating modes directly using the dedicated key*:
  – High resolution display x 10
  – Precision weighing with temporary recalibration via a sample weight (for internal factory use)
  – Net/Gross
  – Lb to Kg converter
  – Free conversion factor (for meter and litre counters etc.)
  – Weight totalizer
  – Formulizer
  – +/- controller with quick target and threshold input
  – Percentage weighing
  – Percentage batching with programmable target
  – Piece counter
  – Hold
  – Alibi memory (optional)
• Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.* These quick access keys to the menus can be blocked by configuring a dedicated password.

OPTIONAL EXTRAS

• Special capacity e/o divisions.
• High resolution.
