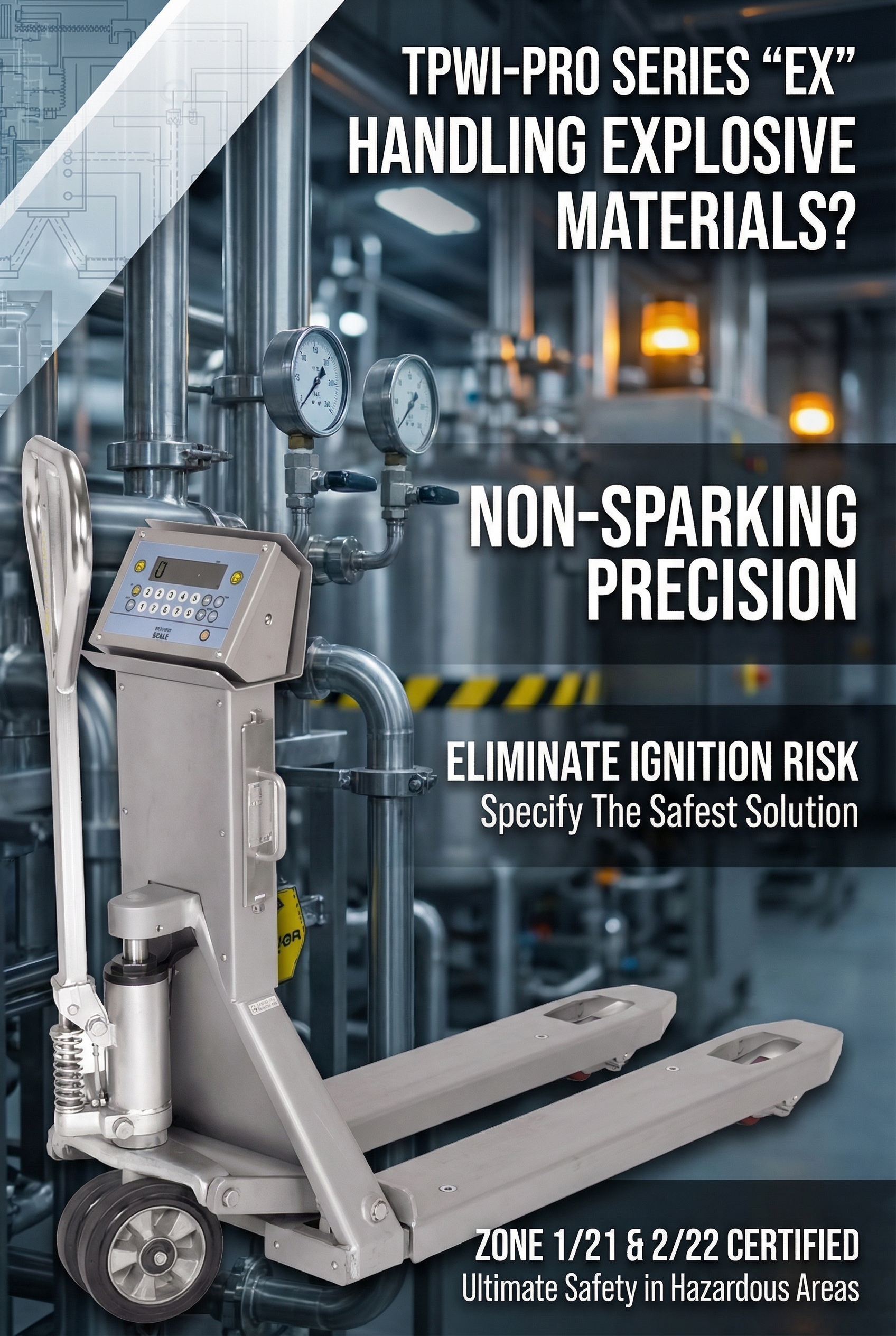

TPWI-PRO series “EX” 2GD PALLET TRUCK SCALE IN STAINLESS STEEL ZONE 1/21 & 2/22

MAIN FEATURES

• Maximum lifting capacity: 2.000 kg; special capacities on request, up to 3.000 kg.
• Resolution:
  > internal use: 0,2 / 0,5 kg
  > approved: 0,5 / 1 kg
• Accuracy (weighing of goods on Europallet with distributed load):
  > internal use: +/- 1 kg
  > approved: according to CE certification (Directive 2014/31/EU)
• Calibration and Set-Up parameters configurable from keyboard.

MAIN FUNCTIONS

• Zeroing, Tare
• High resolution display x 10.
• Net/Gross or lb/kg conversion.
• Weights totalisation.
• Formulation.
  Discover the other functions, download the manual.

WHY CHOOSE TPWI-PRO?

• Pallet truck scale with thick stainless steel structure, entirely manufactured in Italy.
• Lifting pump manufactured entirely in Italy, available on request for lifting up to 3,000 kg.
• Made with ATEX certified Dini Argeo components.
• Weight indicator with waterproof casing in IP65 STAINLESS STEEL, easy to clean and resistant in harsh and corrosive environments.
• The large 25mm LCD display allows viewing even in low light conditions.
• Available in approved version for legal-for-trade use.
• Extractable battery, rechargeable in safe area, connectable and disconnectable to the weighing system even in hazardous area.
• Autonomy of 150 hours approximately, or 24/7 with optional second rechargeable battery.
• Fitted with 4 Dini Argeo Atex certified IP68 stainless steel load cells.
• Each pallet truck is tested and supplied with calibration certificate to guarantee the declared accuracy.
• Special non-standard dimensions available on estimate.

TECHNICAL FEATURES

• Low-profile forks, only 85 mm.
• Fork dimensions 1150 x 550 x 85 mm.
• Lifting range: from 85 to 205 mm.
• Pallet truck weight: 135 kg approx.
• Supporting structure made entirely of extra-thick AISI 304 stainless steel.
• Forks in AISI 304 stainless steel.
• Closed fork covers for increased protection of the double load wheels.
• Antistatic guide wheels, with polyurethane coating for smooth running. 200 mm diameter ensures optimum smoothness and manoeuvrability.
• Antistatic loading rollers.
• Lifting pump in AISI 304 stainless steel allowing controlled lowering of the forks.
• Waterproof membrane keyboard, with 17 numeric/functional keys.
• Dini Argeo electronics, ATEX certified, intrinsically safe.
• Standard 110/230Vac 50Hz battery charger with EU, UK, US and AU plugs (recharge time 8 hours).
• Temperature range: -10° / +40° C

SPARE OR REPLACMENT BATTERIES EASY TO ACQUIRE

SPARE OR REPLACEMENT SAFE AREA CHARGERS

OPTIONAL STAINLESS STEEL PARKING BRAKE
