TE 69K Series

TE 69K Series

TE 69K Series

AISI 304 Stainless Steel. Load cell in Stainless Steel. IP68 and IP69K protection rating.

Precision class C3, C3MR, C3MI, C6, C6MR.

Category:

Description

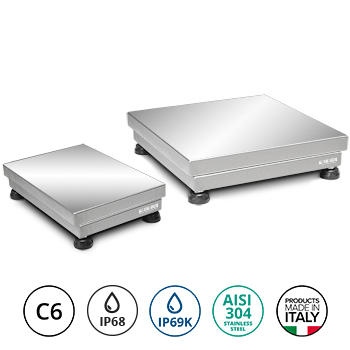

The TE 69K Single Cell Platform

TE 69K series platforms are known for their accuracy and robustness.

The AISI 304 stainless steel construction and IP68 and IP69K load cell protection make these platforms ideal for industrial and commercial applications in harsh environments with high humidity and water exposure.

The C6 accuracy class approved load cell provides accurate weighing to improve production quality and optimise raw material consumption.



MAIN FEATURES

  • Functions with an approved “single point” STAINLESS STEEL C6 load cell according to OIML R60 standards with protection against dust and water splashes according to IP68 and IP69K standards.
  • Structure with tubulars, mechanics, trinkets and loading surface in AISI304 satin finish stainless steel.
  • Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
  • Up to 15 Vdc power supply.
  • Shielded 3m connection cable with connectors for connection to the indicator.
  • Available in approved multi-range 3000+3000e or 6000+6000e, and multi-interval 2x3000e.
  • Made in Italy.

Multi Interval Version “-MI”

The T and TE series scales are available in a 2x3000e multi-range approved version, the best combination of accuracy and ease of use for a class C3 approved weighing instrument.

Compared to the more common multi-range type approval, the multi-interval type approval offers ADAPTIVE measurement resolution, which automatically varies by adjusting to the weight being measured.

NOTE: Multi-interval models are distinguished by the final “-MI” abbreviation and must be paired with a DFW or 3590 series Dini Argeo indicator, DiniCal calibration service and ECEM2MI approval service.
