PUE 7 High Resolution Industrial Scale

PUE 7 High Resolution Industrial Scale

High Accuracy Monoblock based weighing machine suitable for environments and industries where a high capacity with the highest accuracy and stability is required

Categories: , , ,
Downloads
Datasheet

Description

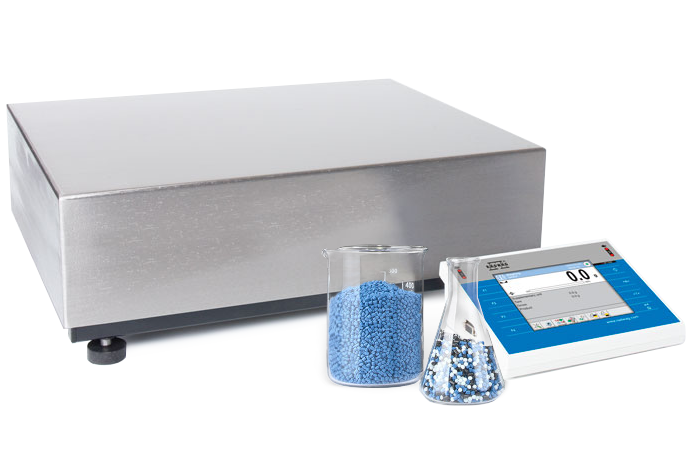

High Resolution Scale

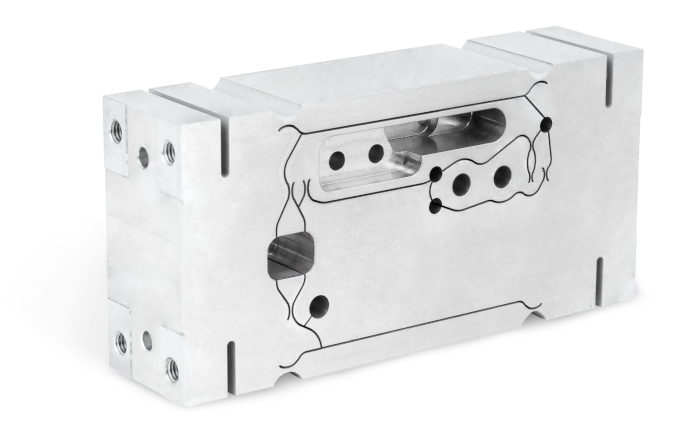

The HRP high resolution scales feature a cutting-edge measuring system based on MONO
BLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.

9 advantages, 1 monobloc

The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved technology.

Repeatability not repeatable by others

Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort. The HRP high resolution scales feature a cutting-edge measuring system based on MONO
BLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2 000 kg, with a repeatability of 3 g guaranteed.

For such industries as Aerospace, Automotive, pharmaceutical, chemical, food and…

HRP scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the Aerospace, Automotive, pharmaceutical, chemical and food industries.

Choose a terminal

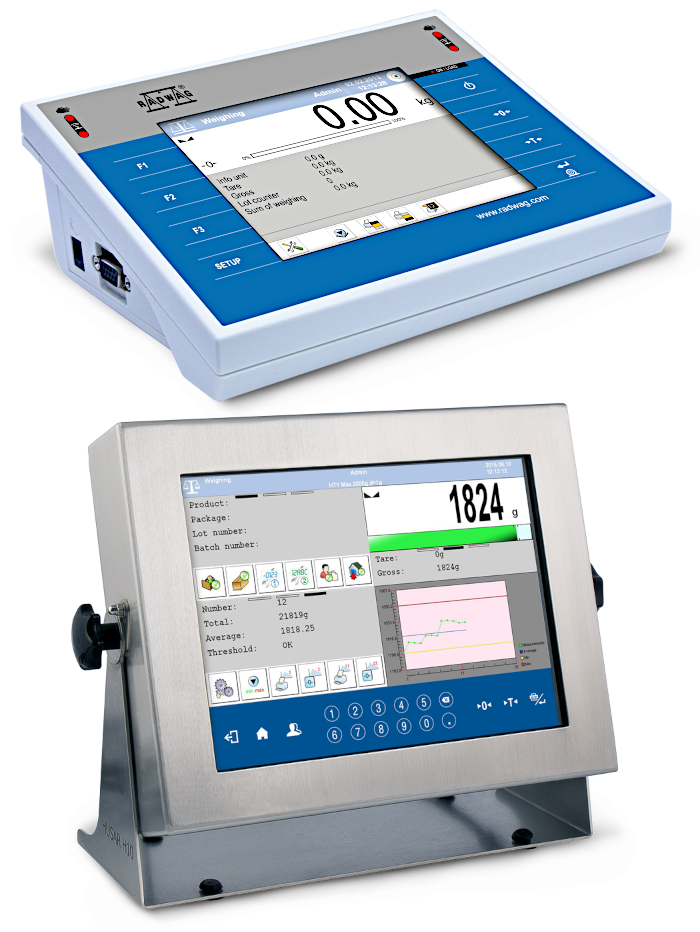

HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
  • 5.7-inch color resistive display
  • a touch-sensitive keyboard
  • ABS plastic housing
  • IP 43 protection rating
  • communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi®,
  • optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
  • 10.1-inch color graphic display
  • touchscreen keyboard
  • stainless steel housing
  • IP 68/69 degree of protection
  • communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
  • optional additional modules: Wi-Fi®, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.

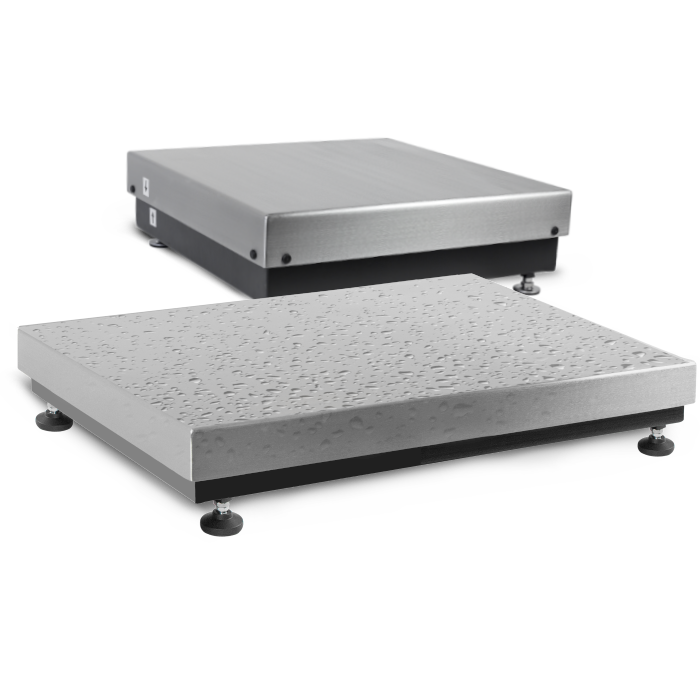

The power of steel

The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.
The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
