OBRF2G4-USB
OBRF2G4-USB - Image 2

OBRF2G4-USB

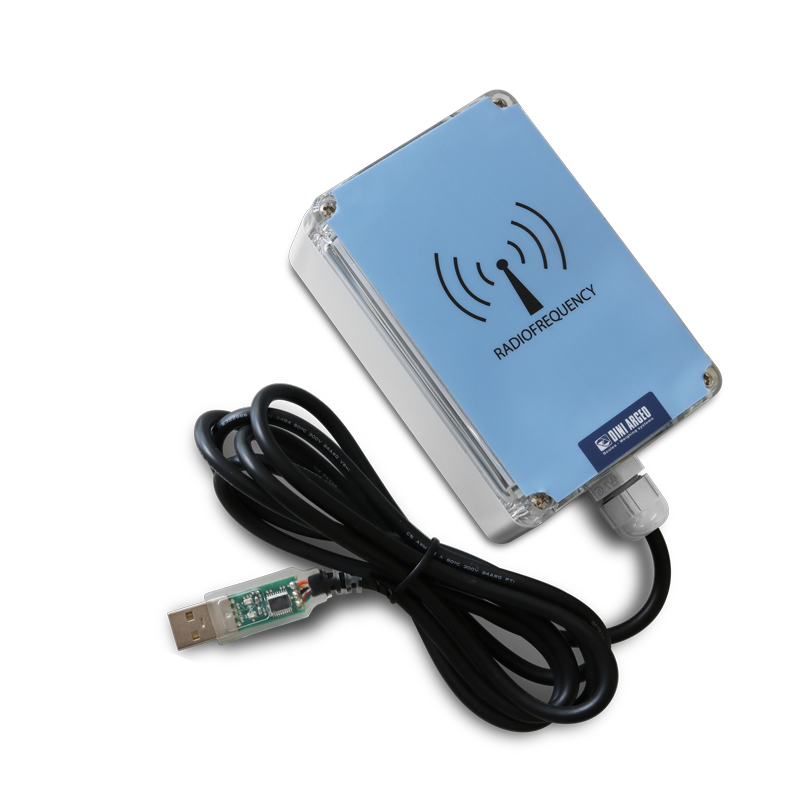

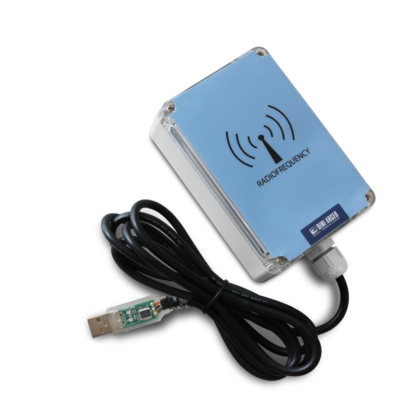

External 2.4 GHz radio frequency module, 1m USB cable

Category:

Description

OBRF2G4 – External 2.4 GHz radio module, USB cable l=1m

External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.

ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.

Technical features:

  • For the connection to weight indicator/repeater.
  • IP65 ABS box.
  • Box dimensions (l x w x h): 120 x 80 x 55 mm.
  • RS232 input signal.
  • RS232 connecting cable, 3 m long.
  • Power supply from weight indicator/repeater.
  • Decoding standard cable colors: (Image 1 in gallery)

Operating specification

  • For the connection to PC.
  • PVC box.
  • Box dimensions (l x w x h): 120 x 80 x 55 mm.
  • USB input signal.
  • USB/mini USB connecting cable, 1 m long.
  • Power supply directly from USB port.
