Mounting accessories for load cells
Because the environment in which load cells are located strongly influences measurement chain performance, we offer accessories suited to every weighing application.
Our weighing modules provide high-performance solutions for weighing tanks, hoppers or silos in an industrial environment. We have specially designed these accessories to facilitate the installation of scales and obtain precise and reliable weighing by reducing interference.
Mounting with damper for F60X, 10 kg ... 300 kg
RUBBERKIT-FX
10 kg ... 300 kg
- Mounting hardware for use with load cell F60X up to 300kg
- Upper plate and base plate made of stainless steel
- Upper plate with rubber to compensate misalignement
- Able to absorb small vibration or shocks
- Designed for small tank weighing
- Maximum load 300 kg
High accuracy mounting F60X / SK30A/X, 10 kg ... 5t
STABIFLEX EVO
10 kg ... 5 t
- Mounting hardware for load cells F60X, SK30A and SK30X
- Zinc plated steel or stainless steel construction
- Cross stoppers and lift-off prevention included
- Can act as a dummy load cell by tightening bolts up
- Ball-in-cup design for high accuracy weighing
- Optional stay rod to maintain the structure in dynamic application
- Ideally suited for tanks, vessel and hoppers weighing
- Version F for use with F60X, version SK for use with SK30A or SK30X
Mounting kit with damper for SK30A/X, 300 kg ... 5t
ISOFLEX
300 kg ... 2 t, 3 t ... 5 t
- Mounting hardware for use with load cells SK30A or SK30X
- Plates made of zinc plated steel
- Upper plate includes damper for vibration and shock absorbtion
- Designed for tanks or hoppers weighing
- Upper plate and base plate sold separatly
Vesatile mounting kit SK30A/X, 300 kg ... 5t
QUICKFIT-S
300 kg ... 5 t
- Suitable for weighing tanks, conveyors or machines
- Made of stainless steel
- Damper to absorb vibrations
- Ball joint decoupling with height adjustable
- Allow misalignment, inclination and expansion of the structure
- Damper and base sold separately
- Optional welding upper plate
- Safety restraint devices not provided
- For use with SK30A or SK30X
High safety mounting for R10X, 250 kg ... 100 t
SILOSAFE-R EVO
250 kg ... 100 t
- Mounting hardware for load cell R10X up to 100 t
- Designed to weigh tanks and silos safely
- Zinc plated or stainless steel construction
- High capacity lift-off prevention device and cross stoppers
- 1 or 2 optional stay rods to maintain the structure in dynamic application
- TÜV certification of safety data
- Pendulum bearings allowing vessel expansion to provide high weighing accuracy
- Integrated jacking bolts for easy load cell installation
High capacity mounting kit for RH10X, 100 t ... 300 t
SILOSAFE-RH EVO
100 t ... 300 t
- Mounting hardware for load cell RH10X from 100t to 300t
- Designed to weigh tanks and silos safely
- Zinc plated construction
- High capacity lift-off prevention device and cross stoppers
- TÜV certification of safety data
- Optional certification according to EN1090
- Pendulum bearings allowing vessel expansion to provide high weighing accuracy
- Integrated jacking bolts for easy load cell installation
Very High capacity mounting for RH10X, 500 t ... 750 t
SILOSAFE-RH 750
500 t ... 750 t
- Mounting hardware for load cell RH10X 500 & 750 t
- Designed to weigh silos safely
- Zinc plated construction
- High capacity lift-off prevention device and cross stoppers
- Pendulum bearings allowing vessel expansion to provide high weighing accuracy
Low cost mounting kit for R10X, 250 kg ... 30 t
SILOKIT-RX
250 kg ... 15 t, 30 t
- Mounting hardware for load cells R10X up to 30 t
- Made of stainless steel
- Lift-off prevention device
- Plate system against lateral forces
- Compact design and easy installation
- Designed for tanks, vessel and silos weighing
Mounting plates for R10X, 250 kg ... 100 t
R10X plates
250 kg ... 100 t
- Designed for tank weighing
- Base plates made of zinc plated steel
- Standard Upper plates made of stainless steel
- Upper plate compatible CAP made of zinc plated steel
- Upper and Base plates sold separately
Assembly kit for CB50X / CA40X, 5 t ... 200 t
STABICAN
5 t... 40 t, 60 t, 100 t ... 200 t
- Mounting hardware used with load cells CB50X or CA40X up to 200 t
- Made of stainless steel or zinc plated steel
- Integrated stabilisation rods
- Lift-off prevention device
- Compact design and easy installation
- ideally suited for high capacity tanks and silos weighing
Weighbridge mounting kit for CB50X, 5 t ... 60t
LPM
5 t ... 60 t
- Mounting hardware for load cells CB50X and CB50X-DL up to 60t
- Made of stainless steel (LPM-X) or zinc plated steel
- Integrated anti-rotation device
- Hermetic O-ring on each cup
- To be used in weighbridge or silo weighing applications
- Compatible with STABICAN kit
- Allow to replace load cell CA40X or C30A by CB50X
Truckscale mounting kit for CB50X, 5 t ... 60t
LPS, LPSH
5 t ... 60 t
- Mounting hardware to be used with load cells CB50X or CB50X-DL up to 60 t
- Made of zinc plated steel
- Especially Designed for weighbridge applications
- Integrated anti-rotation device
- Hermetic O-ring on each plates
- 2 available heights : 170 mm (LPS) or 200 mm (LPSH)
Cups for weighing load cells CB50X, 5 t ... 60 t
LPC
5 t ... 60 t
- Cups kit for load cells CB50X and CB50X-DL up to 60 t
- Made of zinc plated steel
- Integrated anti-rotation device
- Hermetic O-ring on each cup
- For use in weighing application on weighbridges
Traction mounting kit for ZFA / ZA30X, 25 kg ... 7.5 t
ROD END
25 kg ... 7.5 t
- Rod end bearings for tension load cells ZFA, ZA30X
- Made of zinc plated steel
- Prevention of unwanted forces
- Height adjustable

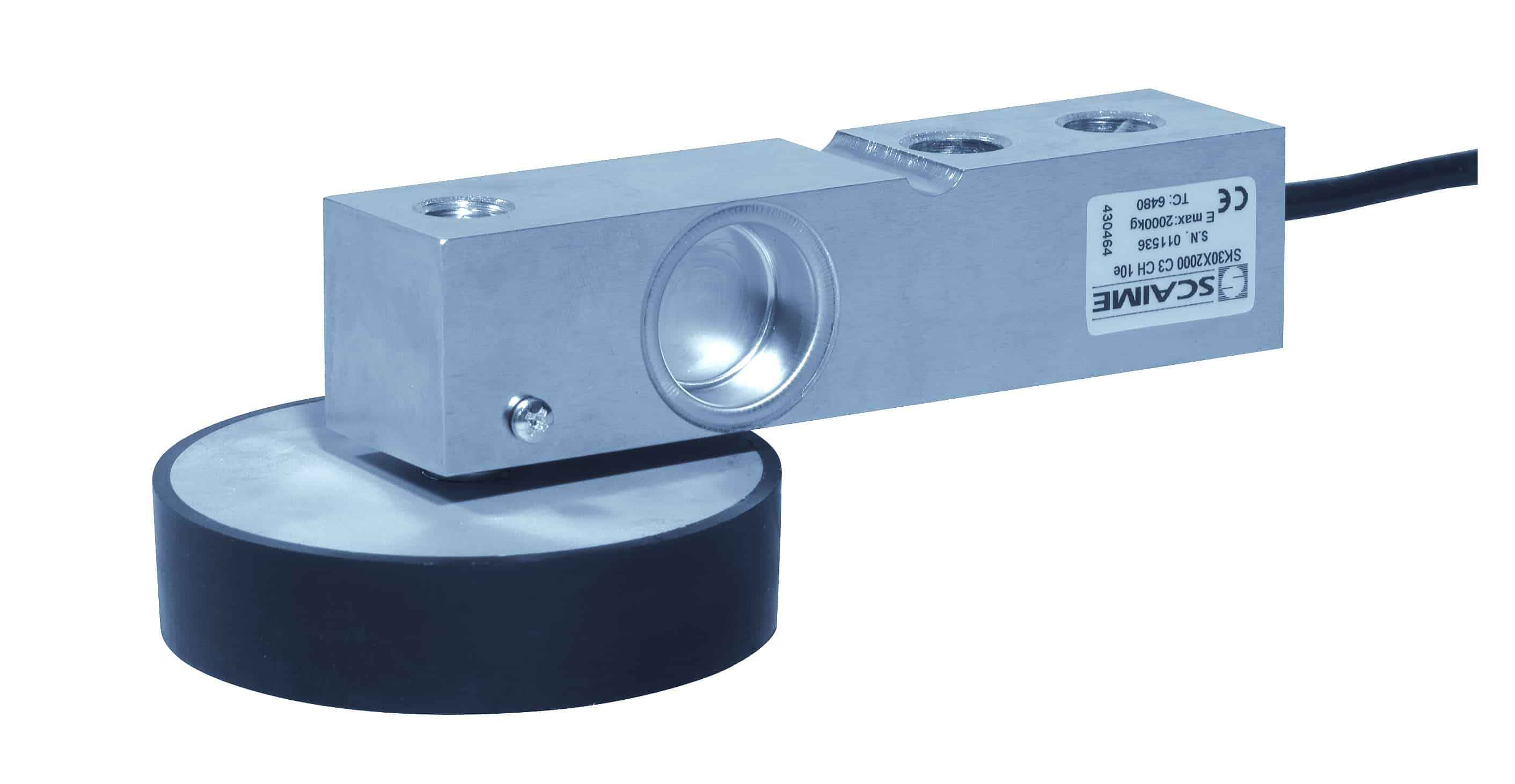

Stainless steel swivel foot for SK30A/X, 300 kg ... 5t
LFA
300 kg ... 5 t
- Swivel foot for use with SK30A and SK30X load cells up to 5 t capacities
- made of stainless steel with elastomer pad
- Perfect prevention of unwanted forces
- Compact and easy to install
- Height adjustable by rotation
Tension mounting kit for F60X, 5 kg ... 200 kg
MTPFA
5 kg ... 200 kg
- Mounting hardware for use with load cell F60X up to 200 kg
- Tension mounting kit
- Made of zinc plated steel
- Designed for mechanical weighbridge upgrade and hopper weighing
Swivel foot for F60X / SK30A/X / S10A, 5 kg ... 5 t
LFC
5 kg ... 5 t
- Swivel foot dedicated to load cells F60X, S10A, SK30A and SK30X up to 5t capacities
- Made of Nickel plated steel with elastomer pad
- Height adjustable
- Integrated articulation (±10°)
Stainless steel swivel foot for F60X, 5 kg ... 500 kg
LFD
5 kg ... 500 kg
- Swivel foot for use with load cells F60X
- Made of stainless steel with elastomer pad
- Height adjustable
- Integrated articulation (±10°)
- Version 500 kg for F60X 5 kg ... 500 kg
