A wide range of Junction boxes to suit a multitude of applications and environments.
Junction box for analog load cells
ALCJB1
- Painted aluminum box, IP65 protection level
- For 4/6-wire strain gage load cells
- For 1 load cell wiring
- Connection by spring clamps
Junction box for analog load cells
ALCJB-A
- Painted aluminum box, IP65 protection level
- For 4/6-wire strain gage load cells
- Versions for 4, 6, 8 load cells wiring
- Corner balancing by potentiometers
- Tool free connection by spring clamps
- Optional lightning protection
DLCJB-A
- Wiring of digital load cells with RS485 output(2-wire bus)
- Painted aluminum box, IP65 protection level
- Up to 8 or 10 digital load cells wiring
- Tool free connection by spring clamps
- Integrated lighning protection
Stainless steel junction box for load cells
ALCJB-X4
- Stainless steel junction box, IP65 protection level
- For 4/6-wire strain gage load cells
- Up to 4 load cells wiring
- Corner balancing by potentiometers
- Connection by spring clamps
"JB4QIP69K": EQUALISED JUNCTION BOX WITH 4 INPUTS
AISI 304 stainless steel junction box with IP68/IP69K protection from water and dust, fitted with electronic board for junction and equalisation of 4 load cells.
Equalisation board with signal adjustment trimmer, for an accurate and reliable equalisation.
The reversible fixing bracket allows the junction box to be hung on the wall, thus saving space.
"JB1I": JUNCTION BOX FOR 4 POLE LOAD CELLS, IN IP68 STAINLESS STEEL
Stainless steel junction box with IP68 protection from water and dust, equipped with electronic board to join 2 load cell cable sections. The 8 screw terminal boards facilitate the cable connection. The stainless steel body ensures solidity and durability.
"JB4PLUS": EQUALIZED JUNCTION BOX WITH OVERVOLTAGE PROTECTION, UP TO 4 LOAD CELLS
Junction box with 4 inputs and protection IP67 suitable for outdoor environments. It can be used as equalization or simple junction box of 2, 3 or 4 load cells. Screw terminal boards to facilitate the connection and signal adjustment trimmer, for an accurate and reliable equalization. The protection circuit protects from lightning and overvoltage
"JB4Q": EQUALISED JUNCTION BOX, WITH UP TO 4 LOAD CELLS
IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
"JBQA": ATEX EQUALISED JUNCTION BOX, WITH UP TO 4 LOAD CELLS
IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation. Marking:
ATEX II 2G Ex ib IIC T6 Gb for gases.
ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust.
"JB4": JUNCTION BOX WITH OVERVOLTAGE PROTECTION, UP TO 4 LOAD CELLS
Simple junction box with IP67 protection and 4 inputs equipped with electronic board for junction of the signals of 2, 3 or 4 load cells. Screw terminal boards to facilitate the connection. The protection circuit protects against lightning and overvoltage. The reduced costs make it the ideal choice for static weighing systems such as silos, tanks and big containers.
"JB8Q": EQUALISED JUNCTION BOX, FOR UP TO 8 LOAD CELLS
Junction box fitted with electronic board for junction and equalisation of up to 8 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic fairleads and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation

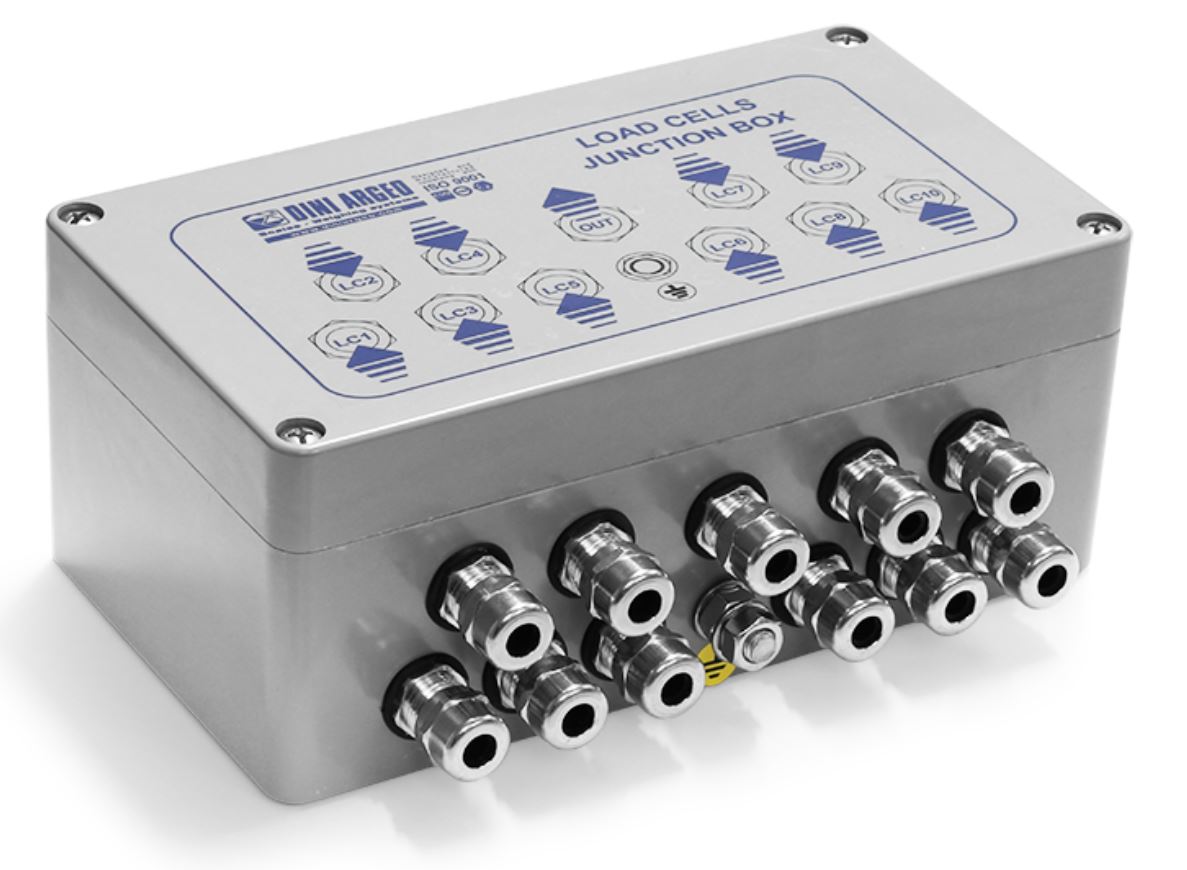

"JB10Q": EQUALISED JUNCTION BOX, FOR UP TO 10 LOAD CELLS
Junction box fitted with electronic board for junction and equalisation of up to 10 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic fairleads and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation
"JBQI": EQUALISED JUNCTION BOX WITH 4/6 INPUTS, IN IP65 STAINLESS STEEL
Stainless steel junction box with IP65 protection from water and dust, and fitted with electronic board for junction and equalisation of 4 or 6 load cells. Terminal board with screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation
"JBQAI": EQUALISED JUNCTION BOX FOR ATEX ENVIRONMENTS, WITH UP TO 4 LOAD CELLS
stainless steel junction box with IP66 protection from water and dust, and fitted with an intrinsically safe electronic board for junction and equalisation of load cells. Terminal boards with screws for easing th connection of the load cells and signal adjustment trimmer, for an accurate and reliable equalisation. Marking:
ATEX II 2G Ex ib IIC T6 Gb for gases.
ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust
"JCQ": EQUALISED JUNCTION CARDS FOR LOAD CELLS
Junction and equalisation cards for up to 10 load cells. Simple to install and connect thanks to the screw terminal boards and the signal adjustment trimmers
